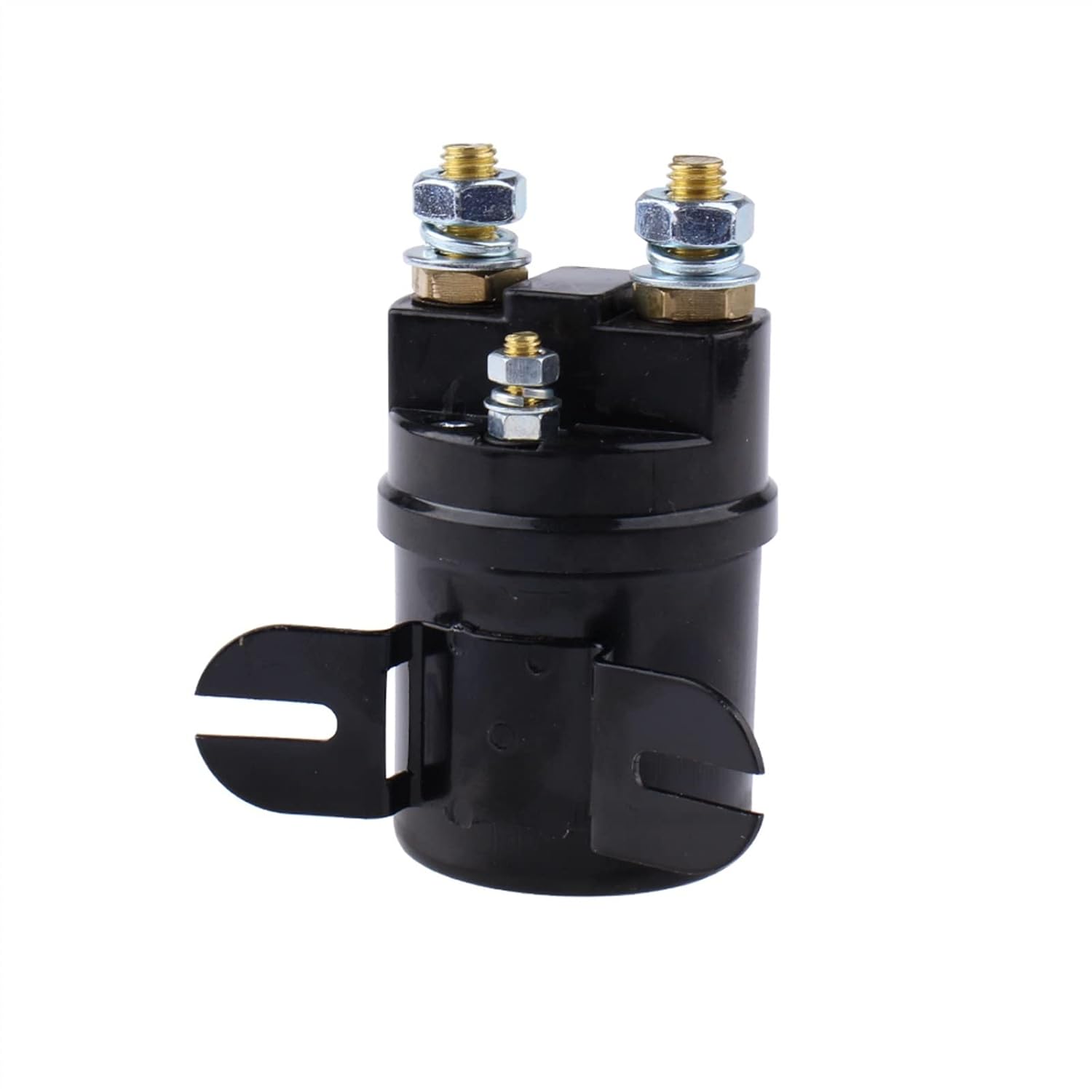

SDC15-300A SDC15-200A SDC15-100A DC6V 12V 24V 36V 48V 60V 72V 300A Contactor Used for Electric Vehicles Engineering Machinery 1Pcs(200A-36V)
Product details
| Management number | 218629784 | Release Date | 2026/05/03 | List Price | $41.86 | Model Number | 218629784 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Ground Fault Circuit InterruptersSDC15-300A SDC15-200A SDC15-100A DC6V 12V 24V 36V 48V 60V 72V 300A Contactor Used For Electric Vehicles Engineering Machinery 1PcsProduct name: DC contactorModel: SDC15-100A 200A 300AContact form: 1 NOCoil Rated voltage(DC V) 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 150V, 220V etc.Contact voltage(DC V): 80VTypical voltage drop across contacts per 100A: 80mVthe cooling pull-in voltage at (20±5) (V): 70%the cooling drop-out voltage at (20±5)(V):35%,5%Working voltage range of 40 degrees coil: 0.8-1.2UsDrop-out time(n/o contacts to open): 30msPull-in time (n/o contacts to close): 5msconnect the maximum contact bounce time: 10msDisconnect the maximum contact bounce time: 3msInsulation Resistance: 20MElectric strength to resist: 50Hz/60Hz 1000VAC 1minuteCoil power (W): 18-30Temperature rise of coil (K): 85Temperature rise on outgoing terminal (K): 65Electric life: 20000 timesMechanical life: 300 thousand timesWork specification: IntermittentContact material :AgCdOLoad terminal type: M8 RoseCoil terminal type: M5 Rose or 6.3mm spade terminals
- Ground Fault Circuit Interrupters
| Model | PJQIYXAE |
|---|---|
| Brand Name | PJQIYXAE |
| Part Number | PJQIYXAE |
| Manufacturer | PJQIYXAE |
| Mounting Type | Bolt-On Mount |
| Current Rating | 0.01 Amps |
| Number of Poles | 1 |
| Circuit Breaker Type | Standard |
