Autool DM103 Digital LCR Tweezer, Resistance Capacitance Inductance Tester for Automotive Circuit Diagnosis, with Resistance Capacitance Diode Mode

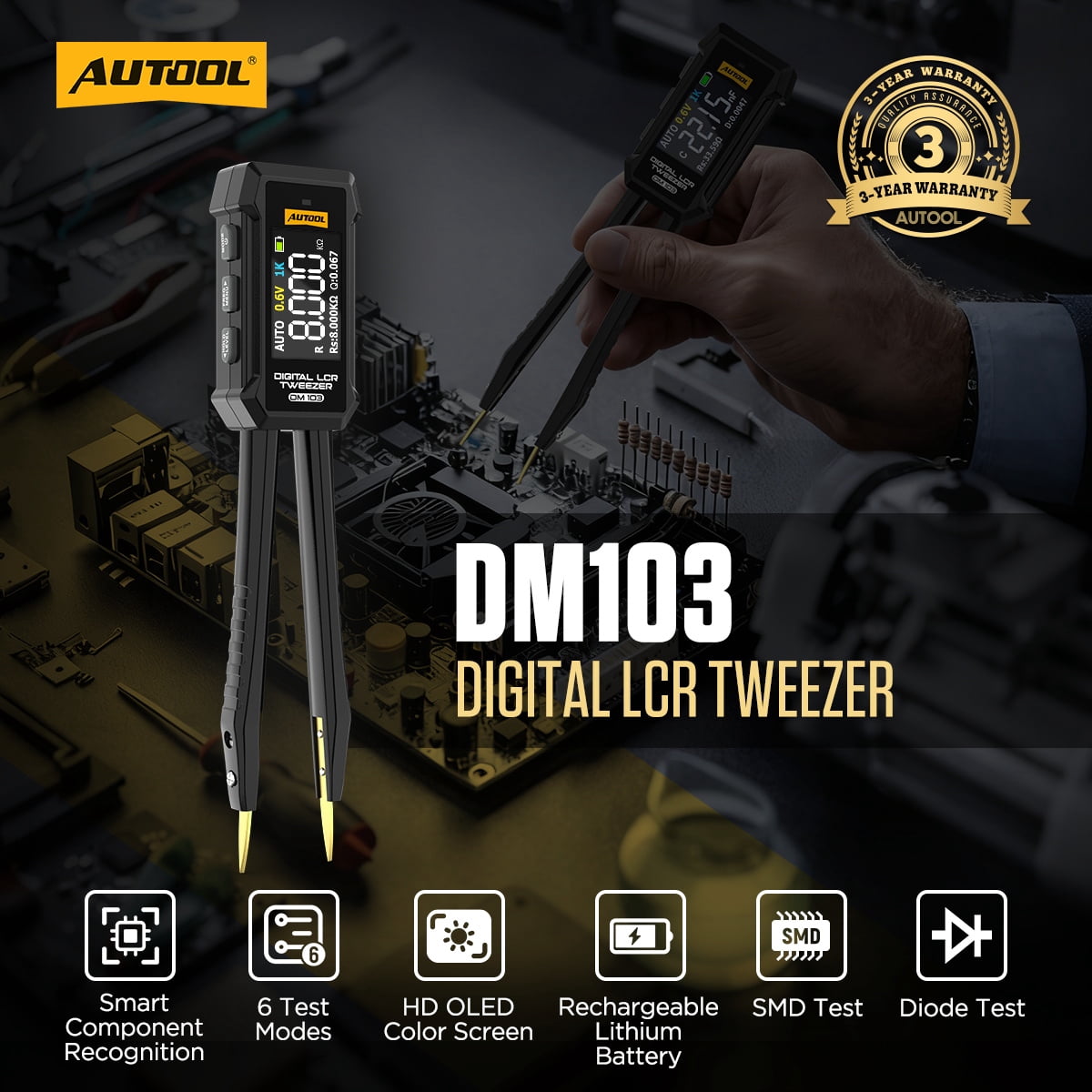

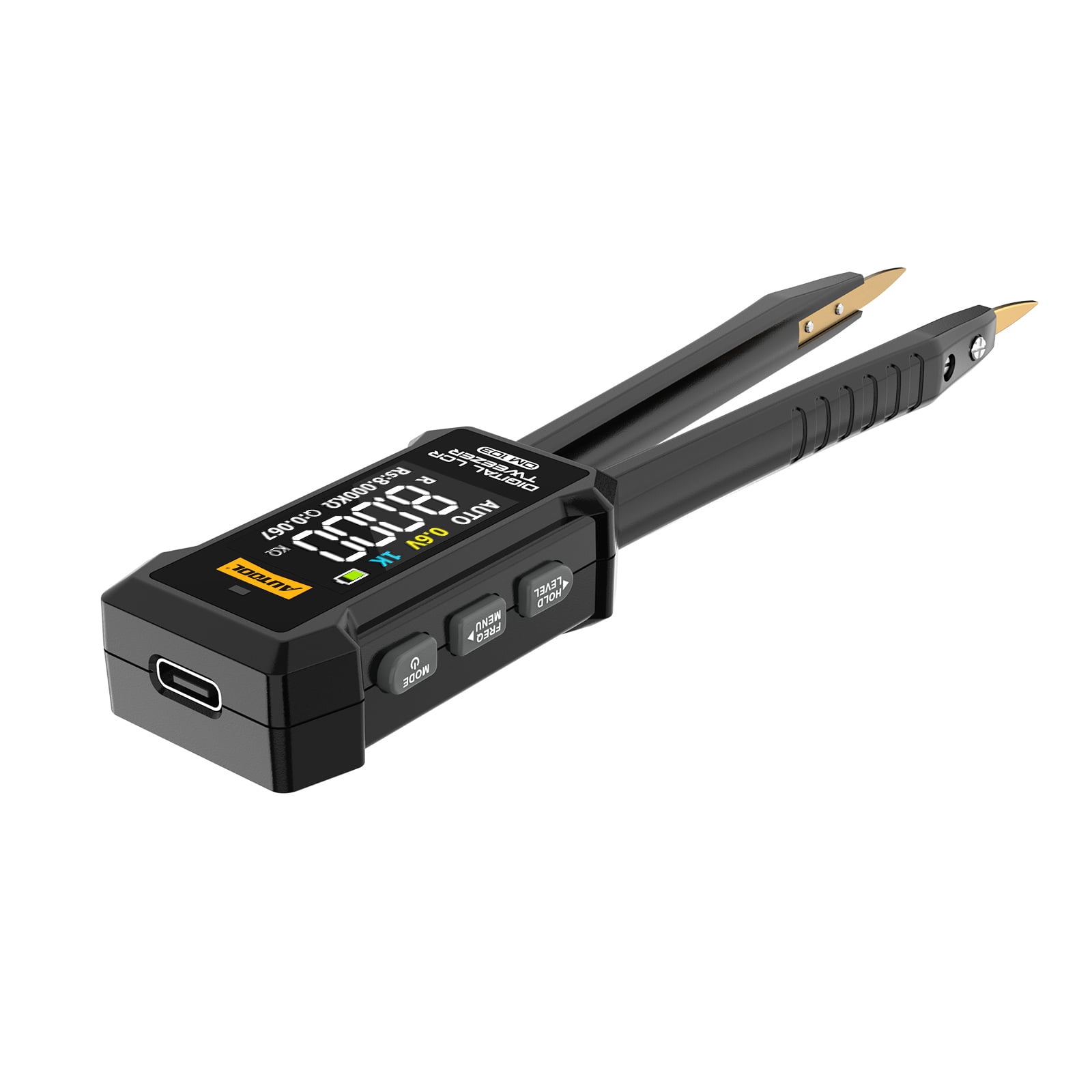

The AUTOOL DM103 is a portable digital LCR tweezers designed for quick electronic diagnostics. It combines six essential test modes. These include resistance, capacitance, inductance, diode, continuity and automatic mode with ±0.5% accuracy. A sharp OLED display ensures clear readings in any workspace, while the flexible tweezer design and gold-plated tips provide reliable contact with SMD parts. Powered by a long-lasting lithium polymer battery, it delivers extended operation and standby time.

• ‌AUTOOL DM103 Digital LCR Tweezer Meter Features:

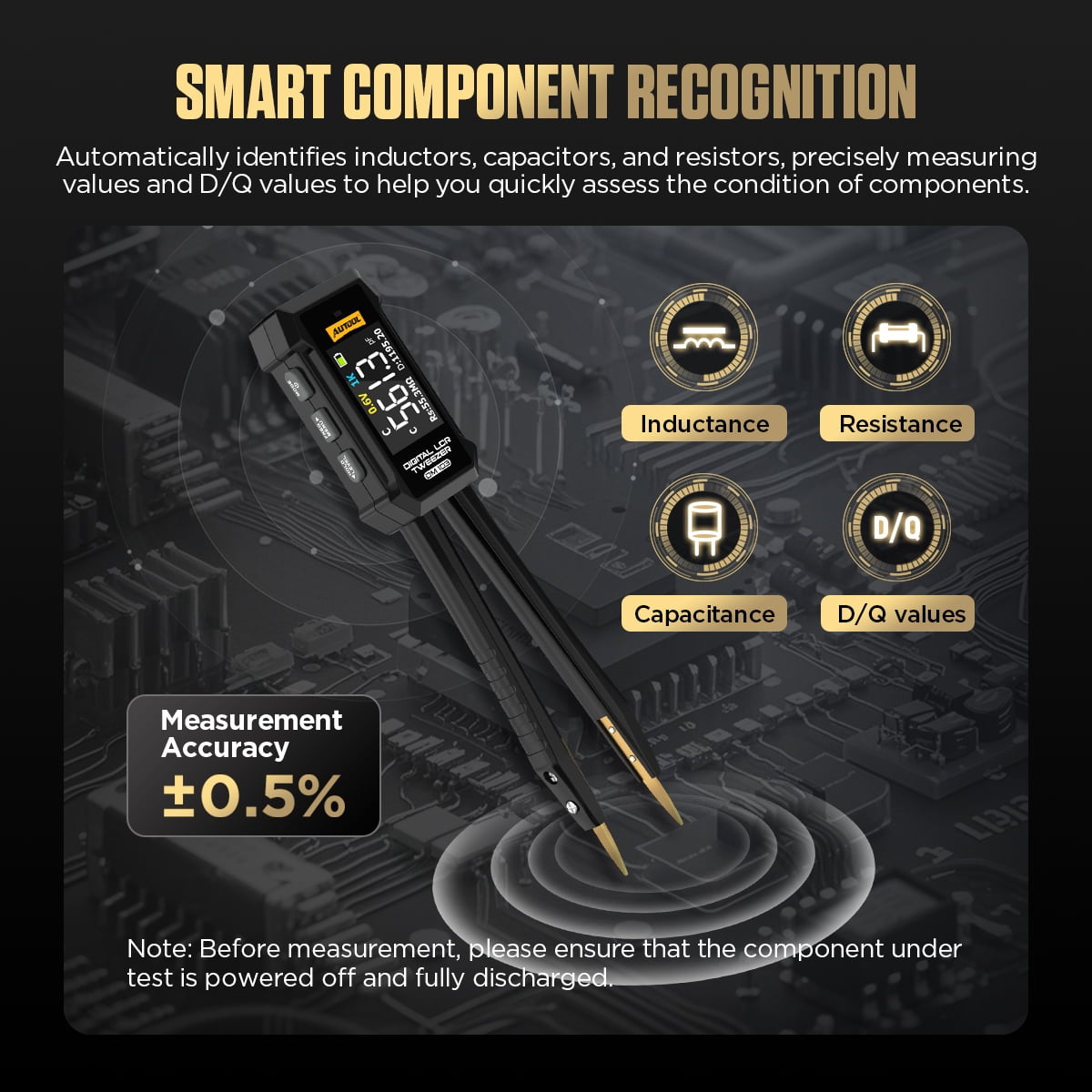

• ➤Smart Auto Mode: Detects and identifies resistors, capacitors, and inductors automatically, quickly determining component condition without manual mode selection.

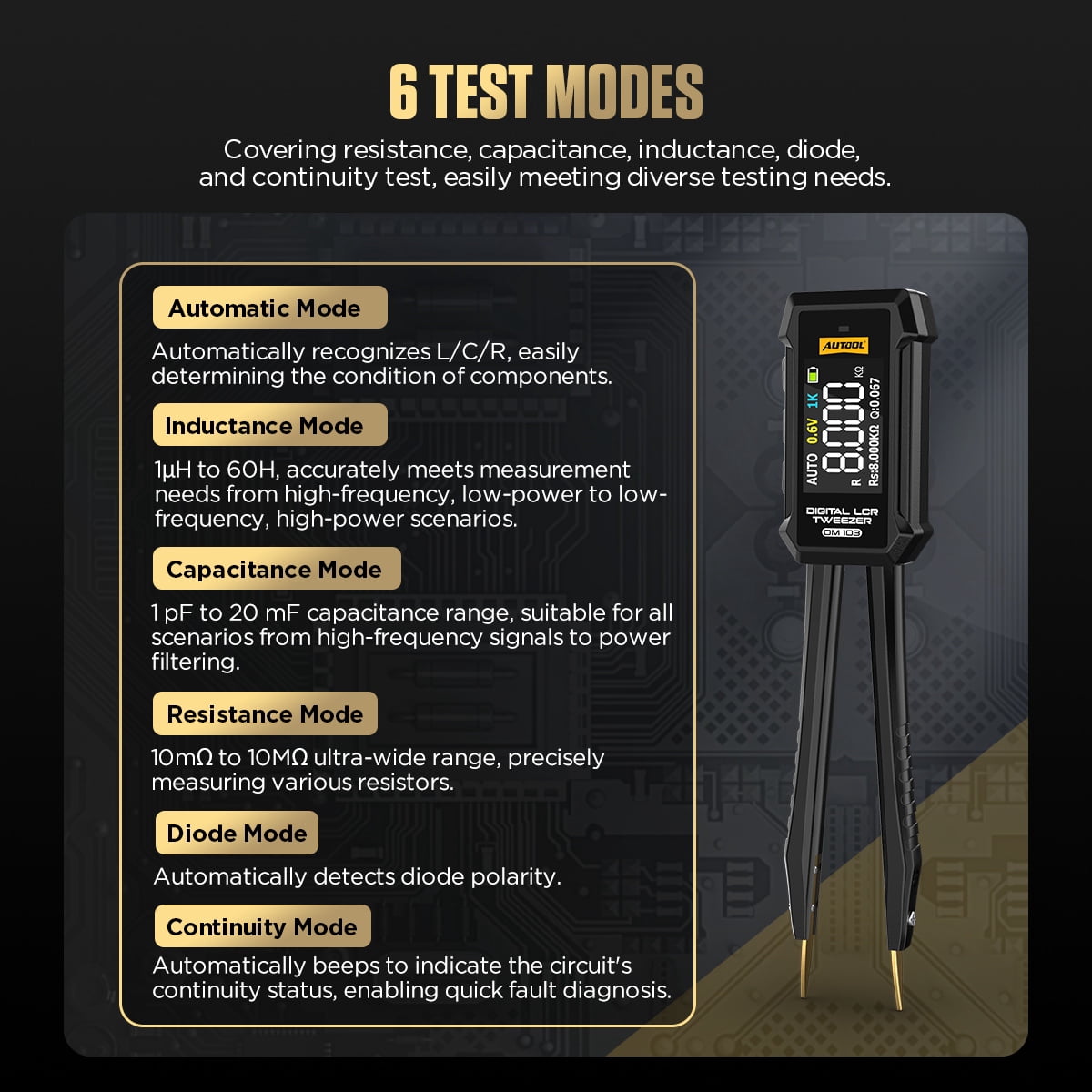

• ➤6 Testing Modes Included: Covers resistance, capacitance, inductance, diode polarity detection, continuity testing, and an all-in-one auto-recognition mode for full versatility.
• ➤Larger Measurement Range and Higher Precision: The measurement range includes test frequencies of 100 Hz, 1 kHz, and 10 kHz, along with test voltages of 0.3 V and 0.6 V. LCR Tester also covers a resistance range from 10 mΩ to 10 MΩ, a capacitance range from 1 pF to 20 mF, and an inductance range from 1 µH to 60 H.

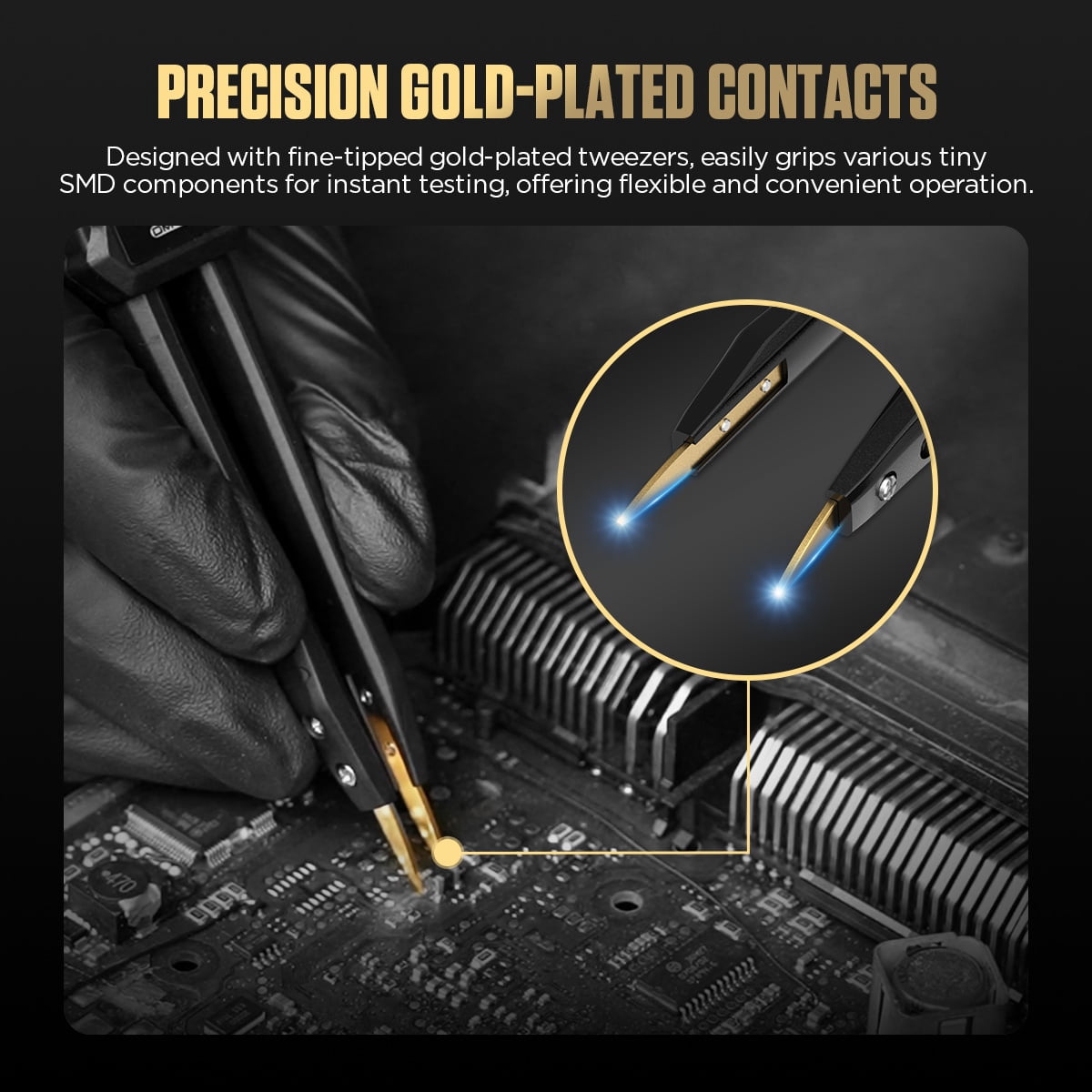

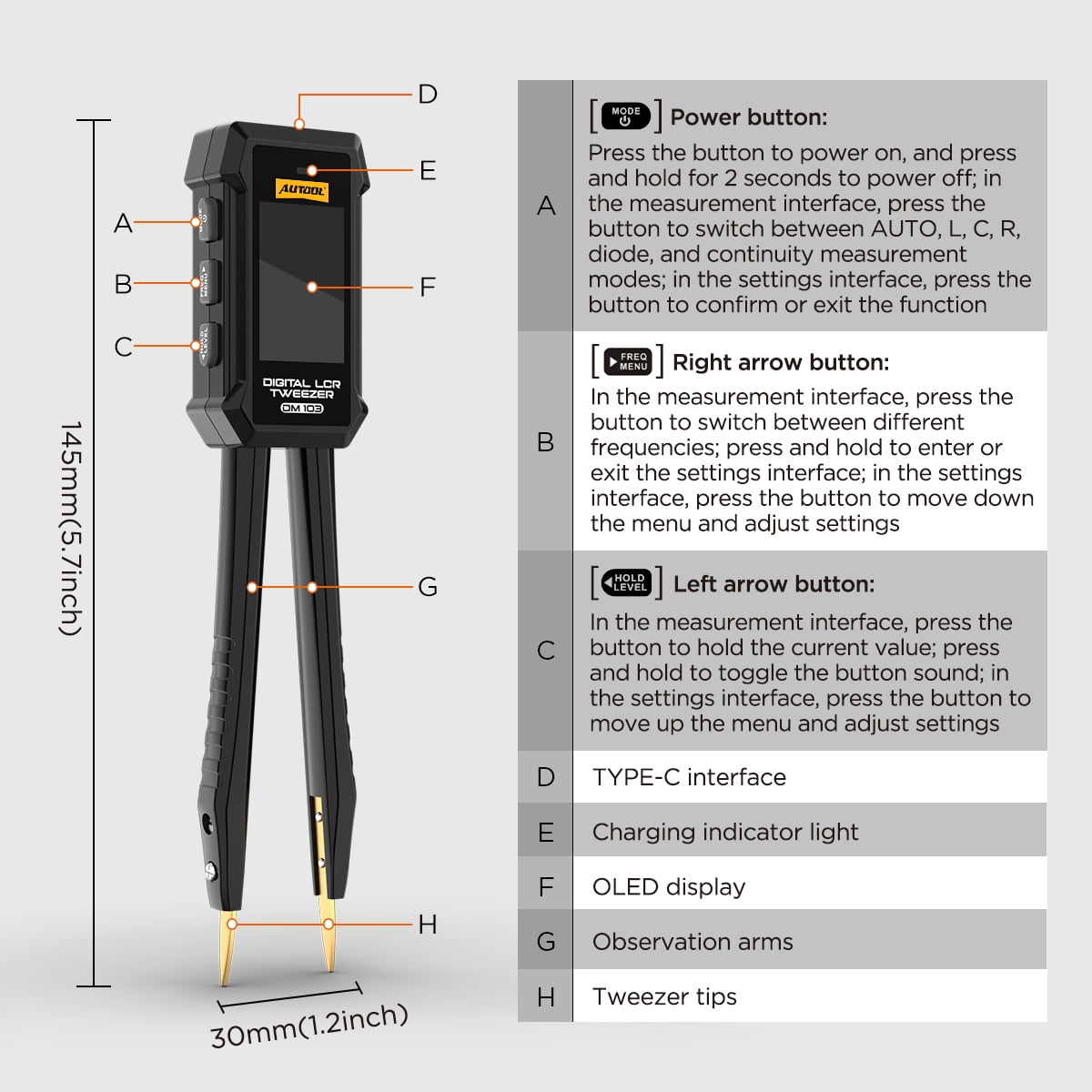

• ➤Ergonomic Tweezer Design:Flexible arms with detachable gold-plated tips ensure secure contact with tiny components for precise measurements.

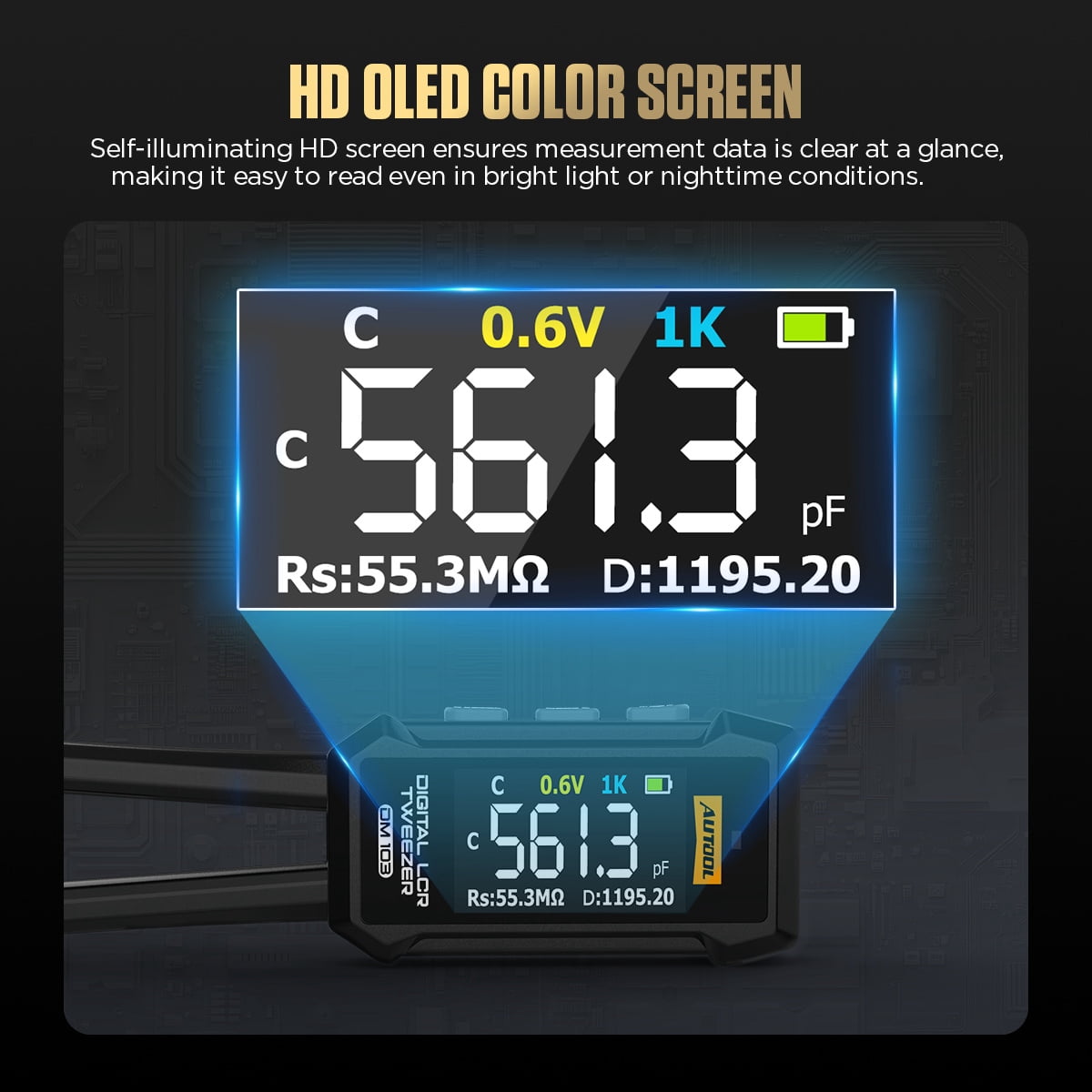

• ➤Clear OLED Color Display: High-contrast screen shows values, parameters (such as D/Q), and icons clearly even in bright or dim lighting conditions.

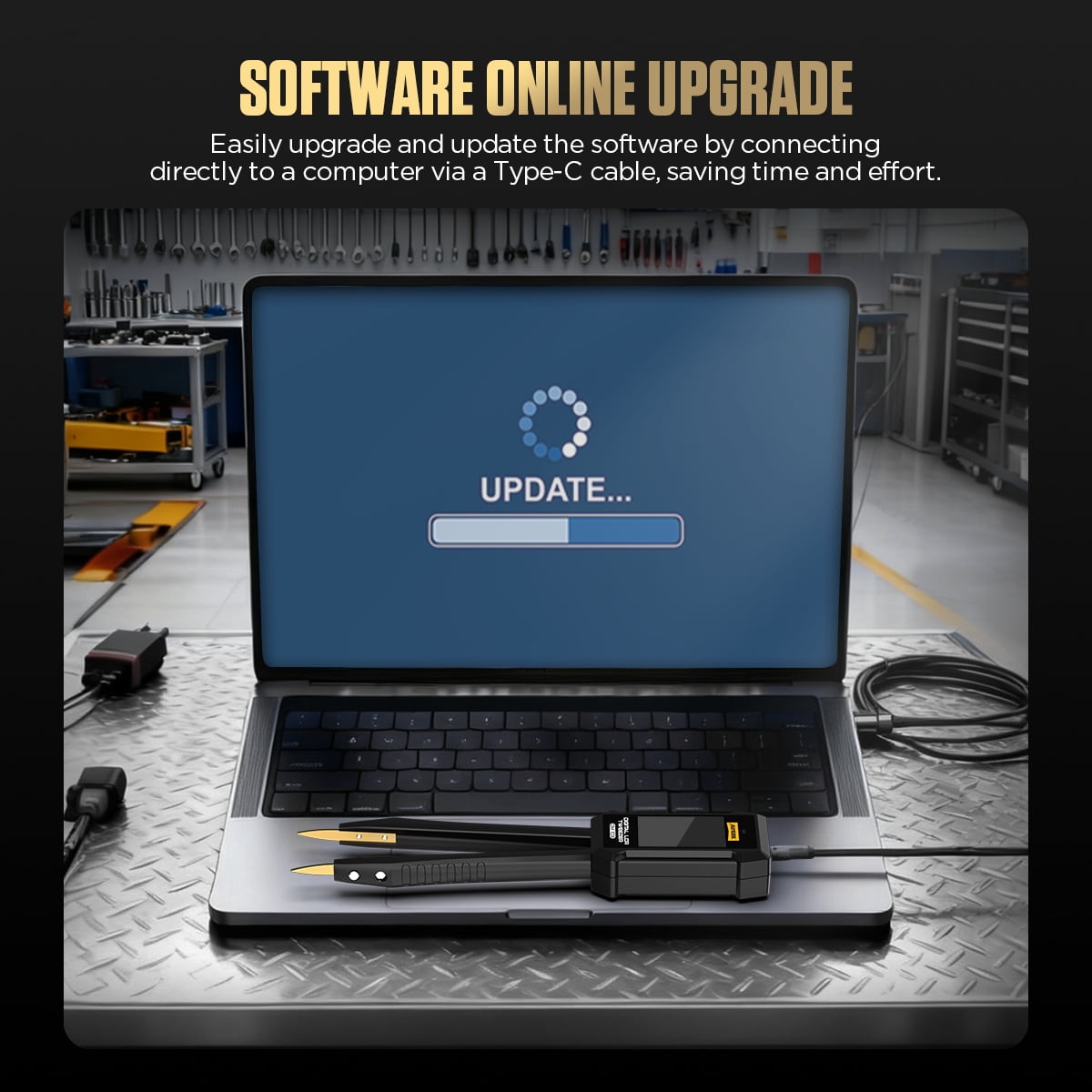

• ➤Rechargeable & Portable: Compact and lightweight body contains a built-in lithium battery offering long runtime, rechargeable and update the software via USB Type-C, for convenient on-the-go use.

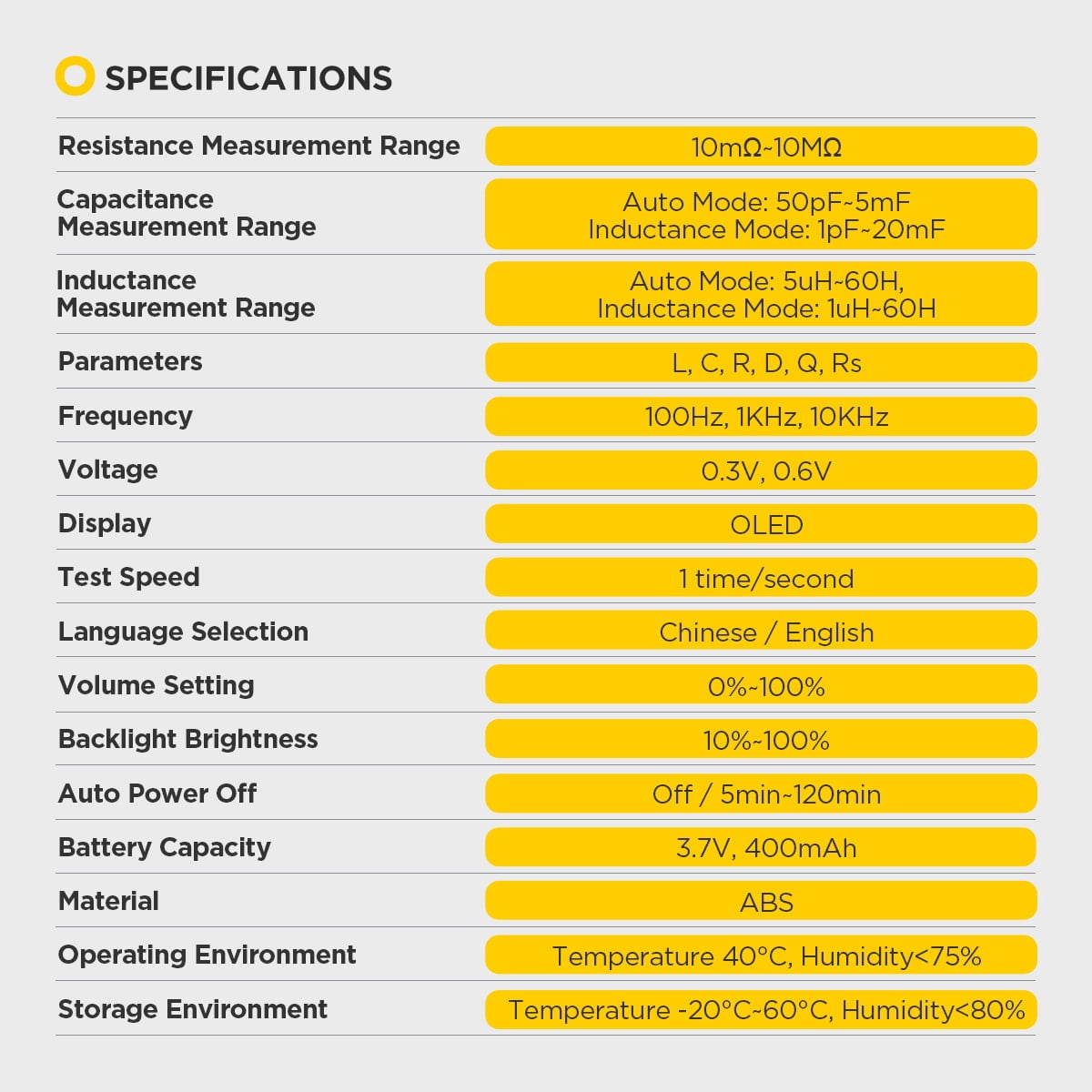

• ➤Specifications:
• Resistance Measurement Range: 10 mΩ to 10 MΩ
• Capacitance Measurement Range: Auto Mode: 50pF to 5mF; Inductance Mode: 1pF to 20mF
• Inductance Measurement Range: Auto Mode: 5μH to 60H; Inductance Mode: 1μH to 60H
• Parameters: L, C, R, D, Q, Rs
• Test Frequency: 100Hz, 1kHz, 10kHz
• Test Signal Voltage: 0.3V - 0.6V
• Display: OLED screen
• Test Speed: 1time per second
• Language Selection: Chinese / English
• Volume Setting: 0% to 100%
• Backlight Brightness: 10% to 100%
• Auto Power Off: Off/ 5min-120min
• Power & Physical Specifications

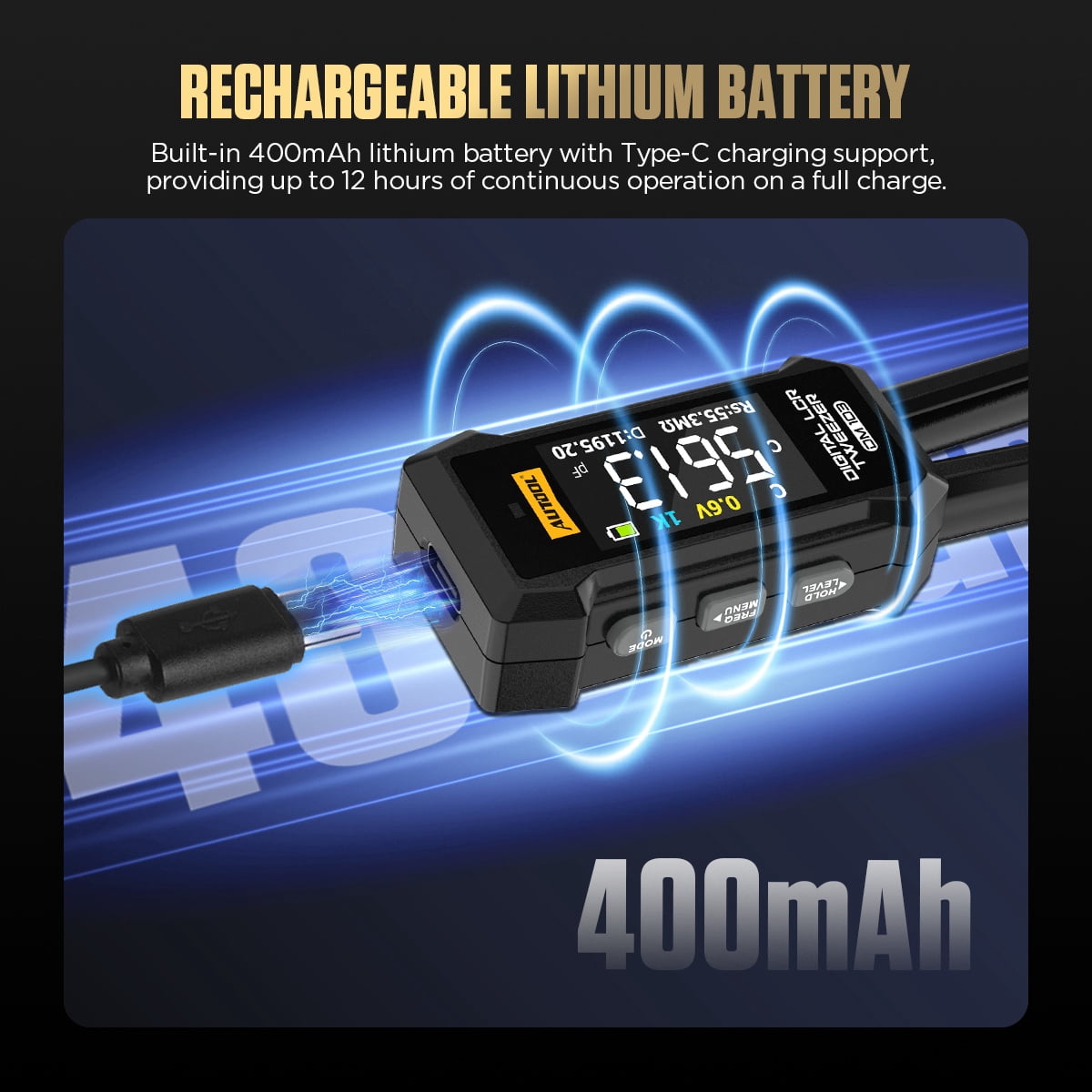

• Battery Capacity: 3.7V, 400 mAh
• Material: ABS
• Operating Environment: Up to 40℃ with humidity below 75%
• Storage Environment: Temperature range from -20℃ to 60℃, with humidity below 80%
