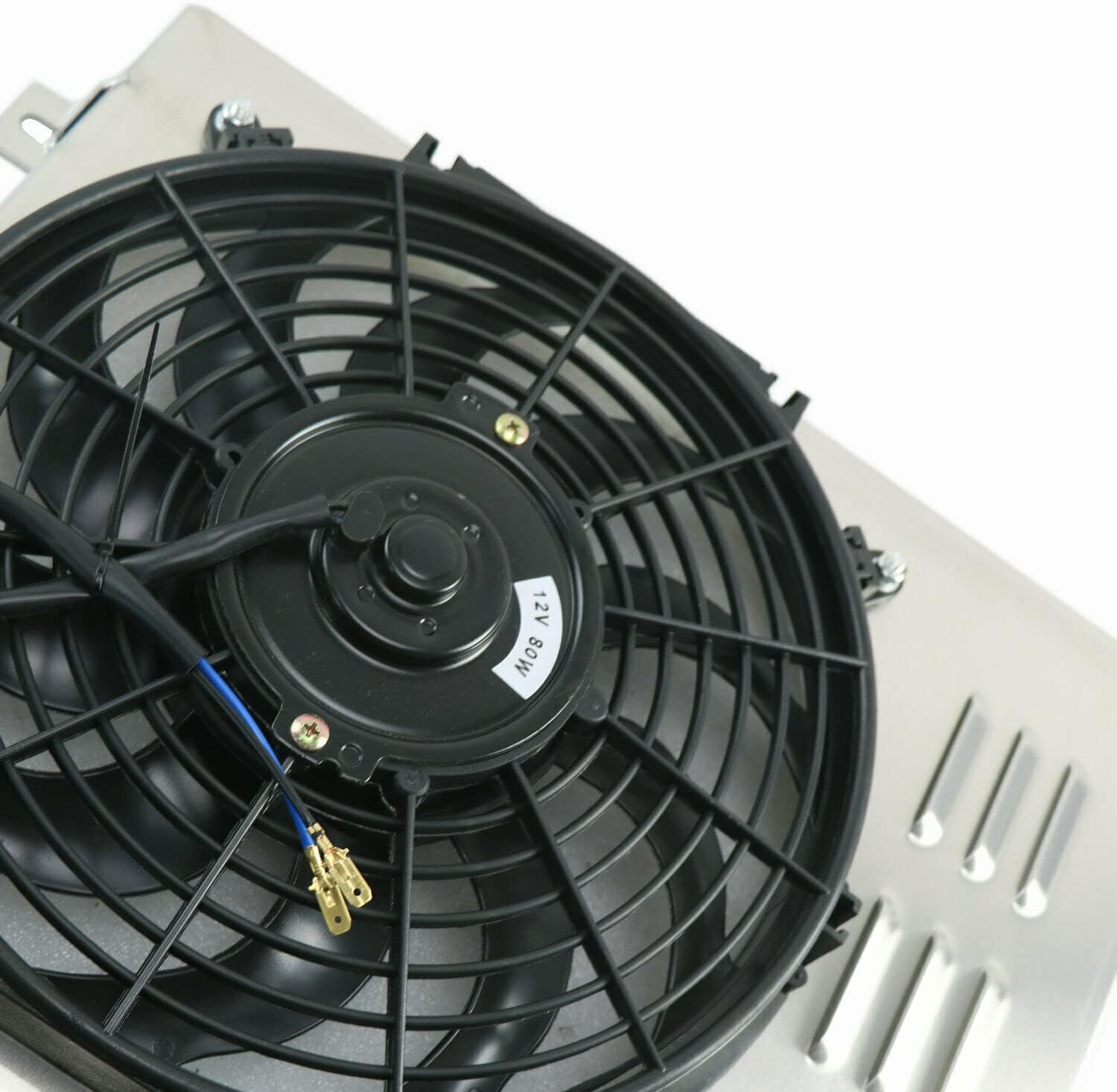

Aluminum Radiator Shroud Fan+ Relay for 1977 1978 1979 1980 1981 1982 Chevy Corvette C3 350 305 5.0 5.7L V8

Compatible with: 1977-1982 CHEVY CORVETTE 5.7L V8 AT/MT FANS: Volt :12v Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. AA5052 Aluminum Shroud and Fans: The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine. 1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect! 2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material. 3. Additional with thermostat,professional matching advice, consider for every detail and needed About us: Dear customer, if you have any questions, please feel free to contact me！

• Direct fit for 1977-1982 Chevy Corvette 5.7l V8
• Overall size: 25.59"L x 18.5"W x 0.98"T
• This Listing Is Including: 1 X AA5052 Aluminum Shroud; 2 X 12" Fans (Includes mounting kits); 1 X Thermostat Relay Kit
• Direct OE replacement with drop-in precise fitment and easy installation
• Precision-engineered by in-house team of automotive experts, heavy-duty design withstands harsh conditions to deliver enduring quality
