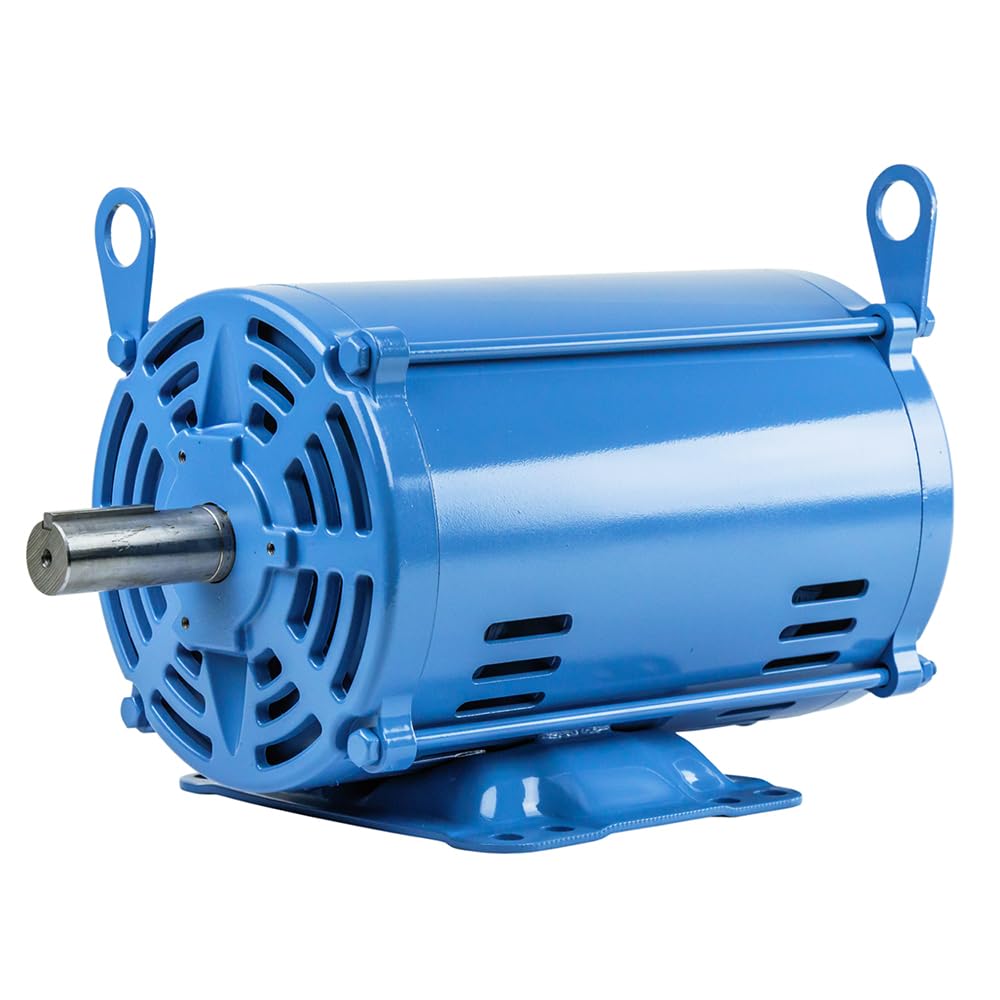

7.5 HP 3 Phase 184T Frame Electric Motor 3500 RPM ODP 230/460V Worldwide Electric ODP7.5-36-184T
Product details
| Management number | 220665000 | Release Date | 2026/05/03 | List Price | $319.98 | Model Number | 220665000 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
WorldWide Electric's Open Drip Proof (ODP) motors are designed and engineered for use in HVAC and refrigeration equipment, air compressors, and general purpose installations where cooler-running, non-enclosed motors are ideal. WorldWide Electric Premium Efficiency ODP motors are available in horsepower ratings from 1/2 to 125 and feature IP23 degree of protection and a double vacuum pressure impregnation process for winding insulation. These motors are an ideal solution for a wide range of industrial and commercial needs. Features: 1/2-125 HP 3600, 1800, 1200 RPM Volt, 60 Hz 190/380 Volt, 50 Hz Open Drip Proof (ODP) Enclosure Rolled Steel Frame (1/2-50 HP) - Cast Iron Frame (60-100 HP) IP23 Protection 1.15 SF (1.0 SF for 50 Hz Applications) Class F Insulation Rigid Base (56C-Face with Removable Base) Premium Efficiency Class B Temperature Rise Inverter Duty, 10:1 CT / 20:1 VT (1.0 SF) Inverter Grade Magnet Wire Meets or Exceeds NEMA MG-1 Part 31 Pre-Drilled and Tapped Drive Endbells on 143T Frame and Up to Accept Inpro Current Diverter Rings; No Machining Required, Simple and Easy Installation Exclusive Double Vacuum Pressure Impregnation (VPI) Insulation System Double Drilled Feet to Accommodate Mounting Flexibility (143T-404T) 254T and larger are suitable for F1 to F2 conversion
- WorldWide Electric's Open Drip Proof (ODP) motors are designed and engineered for use in HVAC and refrigeration equipment, air compressors, and general purpose installations where cooler-running,
- WorldWide Electric Premium Efficiency ODP motors are available in horsepower ratings from 1/2 to 125 and feature IP23 degree of protection and a double vacuum pressure impregnation process for
- These motors are an ideal solution for a wide range of industrial and commercial needs
- Features: 1/2-125 HP 3600, 1800, 1200 RPM Volt, 60 Hz 190/380 Volt, 50 Hz Open Drip Proof (ODP) Enclosure Rolled Steel Frame (1/2-50 HP) - Cast Iron Frame (60-100 HP) IP23 Protection 1
- 15 SF (1
| UPC | 685650083957 |
|---|---|
| Model | ODP7.5-36-184T |
| Speed | 3500 RPM |
| Voltage | 460 Volts |
| Brand Name | Worldwide Electric |
| Horsepower | 7.5 Horsepower |
| Model Name | ODP7.5-36-184T 23054298 |
| Unit Count | 1.0 Count |
| Item Weight | 88.1 Pounds |
| Part Number | ODP7.5-36-184T |
| Manufacturer | WorldWide Electric |
| Material Type | Alloy Steel |
| Warranty Description | No Warranty |
